    Plasma Cutting Machine -- Model PM1000

    PM1000 plasma cutting machine can be installed with CNC cutting tables of various sizes to form CNC plasma cutting system.

    Materials to be cut mild steel, brass, stainless steel, copper, aluminum and more
    Max separation thickness 25mm
    Max smooth cutting thickness 16mm
    Rated input power 3 phase, 380VAC, 50Hz, 18kw, 27A.
    Plasma power type Full bridge IGBT inverter module
    Rated output voltage 140-160VDC
    Rated output current Continuously adjust between 20-100Amps.
    Cooling type Air flow
    Gas pressure 0.4-0.6MPa -- Air, O2, N2
    CNC cutting table 1300x1300mm, 1300x2500mm, 2000x3000mm, 3000x6000mm, 3000x12000mm, 5000x15000mm.....

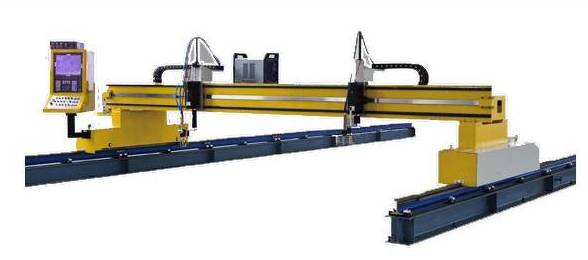

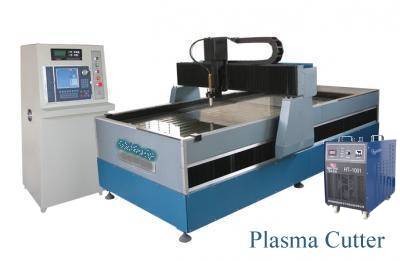

    plasma cutting machine        plasma cutting machine
    CNC plasma cutting machine models: PM100A1313H, PM100A1325H, PM100A1632H, .......... PM100A50150H





    plasma cutting machine



















    Plasma Cutting Machine -- Model PM2000

    PM2000 plasma cutting machine can be installed with CNC cutting tables of various sizes to form CNC plasma cutting system.

    Materials to be cut mild steel, brass, stainless steel, copper, aluminum and more
    Max separation thickness 35mm
    Max smooth cutting thickness 28mm
    Rated input power 3 phase, 380VAC, 50Hz, 38kw, 57A.
    Plasma power type Full bridge IGBT inverter module
    Rated output voltage 140-160VDC
    Rated output current Continuously adjustable between 40-180Amps.
    Cooling type Water cooling.
    Gas pressure 0.4-0.6MPa -- Air, O2, N2
    CNC cutting table 1300x1300mm, 1300x2500mm, 2000x3000mm, 3000x6000mm, 3000x12000mm, 5000x15000mm.....
    plasma cutting machine        plasma cutting machine
    CNC plasma cutting machine models: PM200A1313H, PM200A1325H, PM200A1632H, .......... PM200A50150H





    plasma cutting machine



















    Plasma Cutting Machine -- Model PM4000

    PM4000 plasma cutting machine can be installed with CNC cutting tables of various sizes to form CNC plasma cutting system.

    Materials to be cut mild steel, brass, stainless steel, copper, aluminum and more
    Max separation thickness 65mm
    Max smooth cutting thickness 40mm
    Rated input power 3 phase, 380VAC, 50Hz, 73kw, 110A.
    Plasma power type Full bridge IGBT inverter module
    Rated output voltage 160-200VDC
    Rated output current Continuously adjust between 80-340Amps.
    Cooling type Water cooling.
    Gas pressure 0.4-0.6MPa -- Air, O2, N2
    CNC cutting table 1300x1300mm, 1300x2500mm, 2000x3000mm, 3000x6000mm, 3000x12000mm, 5000x15000mm.....
    plasma cutting machine        plasma cutting machine
    CNC plasma cutting machine models: PM400A1313H, PM400A1325H, PM400A1632H, .......... PM400A50150H
