Handheld laser welding, cutting and cleaning machine

We offer high quality, cost effective handheld multi-function laser welding, laser cutting, and laser cleaning machines

Handheld laser welding, cutting, and cleaning all in one machine

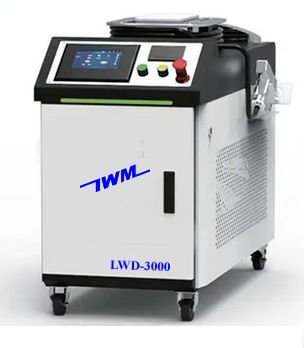

Handheld laser welding machine.

State of art technology handheld laser welding, cutting, and cleaning all in one machine can effciently weld, cut, and clearn (rust removal) sheet metal (mild steel or stainless steel). It is very easy to learn and one it can quickily produce sophisticated results at low cost.

High lights of the machine:

Multifunction in one small compact machine.

Easy to learn and operate, no need prior experience.

High quality and reliable for long time use.

Low cost to invest for machine and low running cost for operation.

Can work on various types of material

High efficiency compared to conventional welding/cutting/cleaning machines.

Low heat generated and less heat affected zone

Overview of the machine

Functions of the machine	welding, cutting, and cleaning	Laser wavelength	1080nm±10nm
Range of power adjustment	10% - 100%	Max power range	1500W, 2000W, 3000W
Power type	3 phase 220V/380V	Power consumption	< 16kw
Fiber cable length	10m	Cooling type	Water cooling
Dimension	460mm W x 1040mm L x 750mm H	Weight	110-150 kg

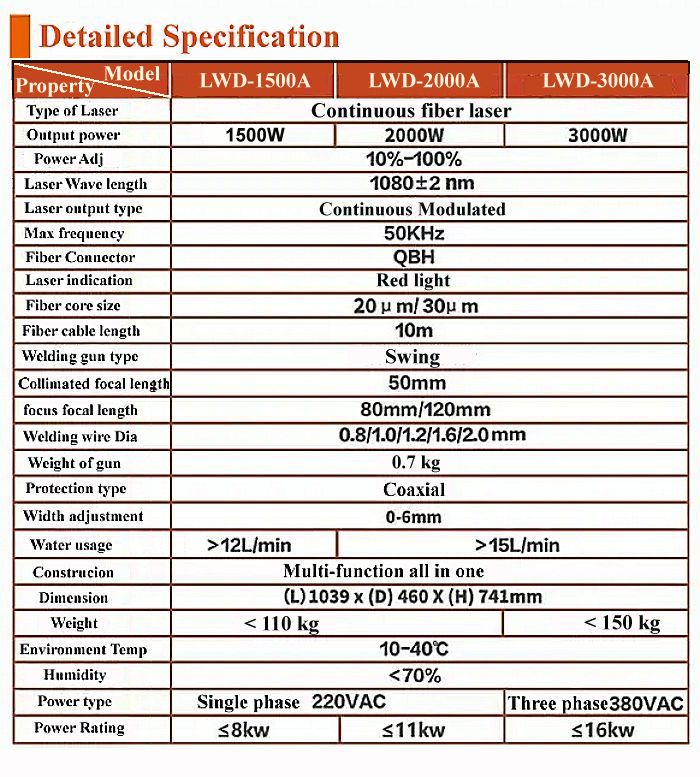

Detailed technical specification:

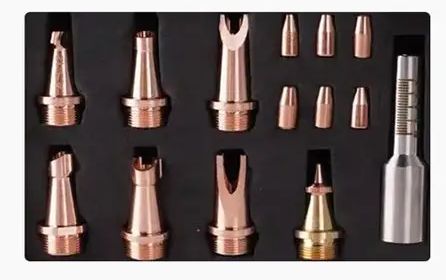

There are may types of accessories available that they can help to produce different results and greatly improve the work efficiency,.

handheld laser welding, cutting, and cleaning all in one machine
