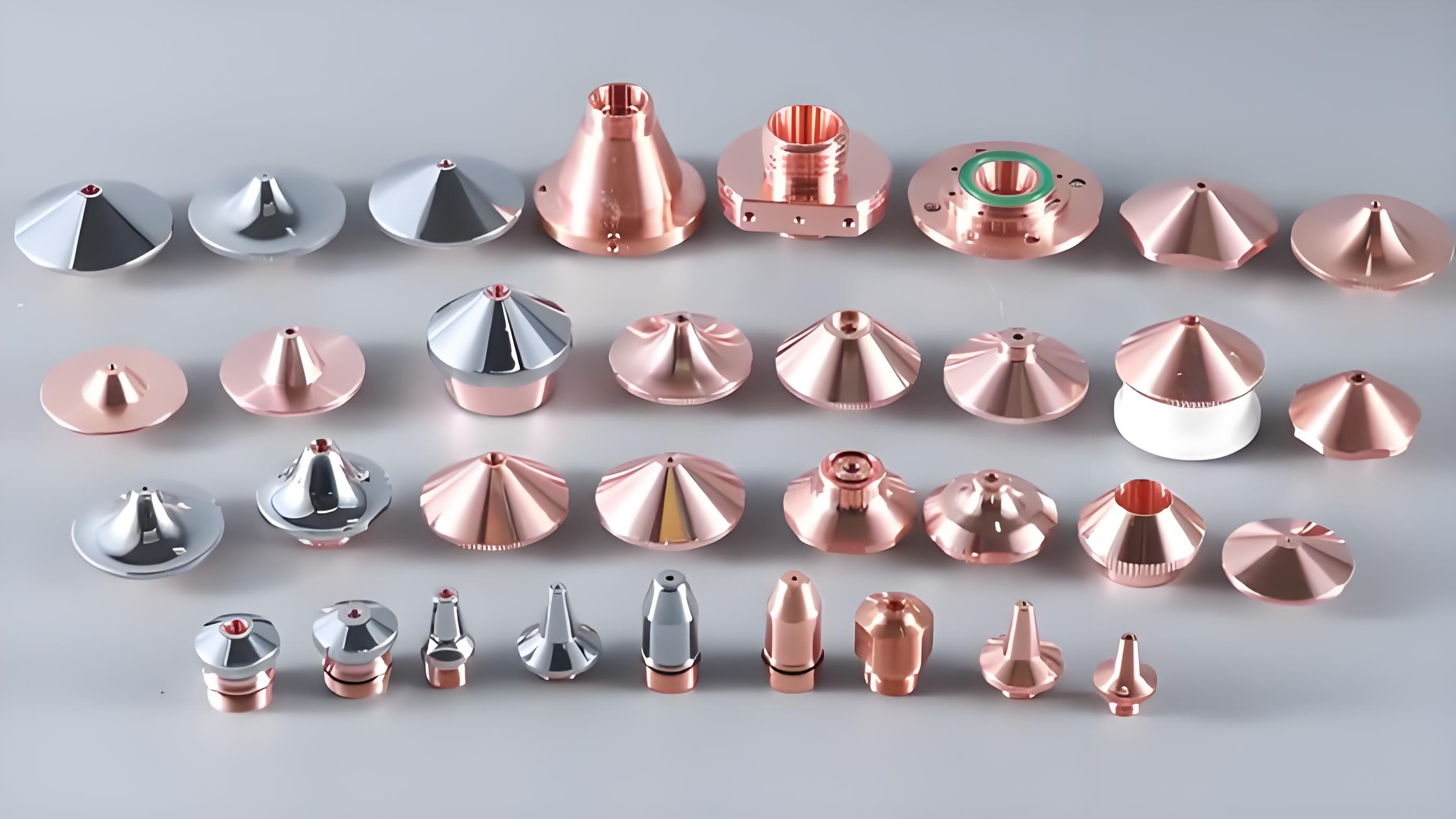

1. Laser Cutting Nozzle
- Function: Focuses the laser beam and directs assist gas to the cutting area.
- Lifespan: 8–12 hours of continuous use (varies based on material and cutting conditions).
- Cost: $10–$50 per nozzle (depending on quality and material).
|
|

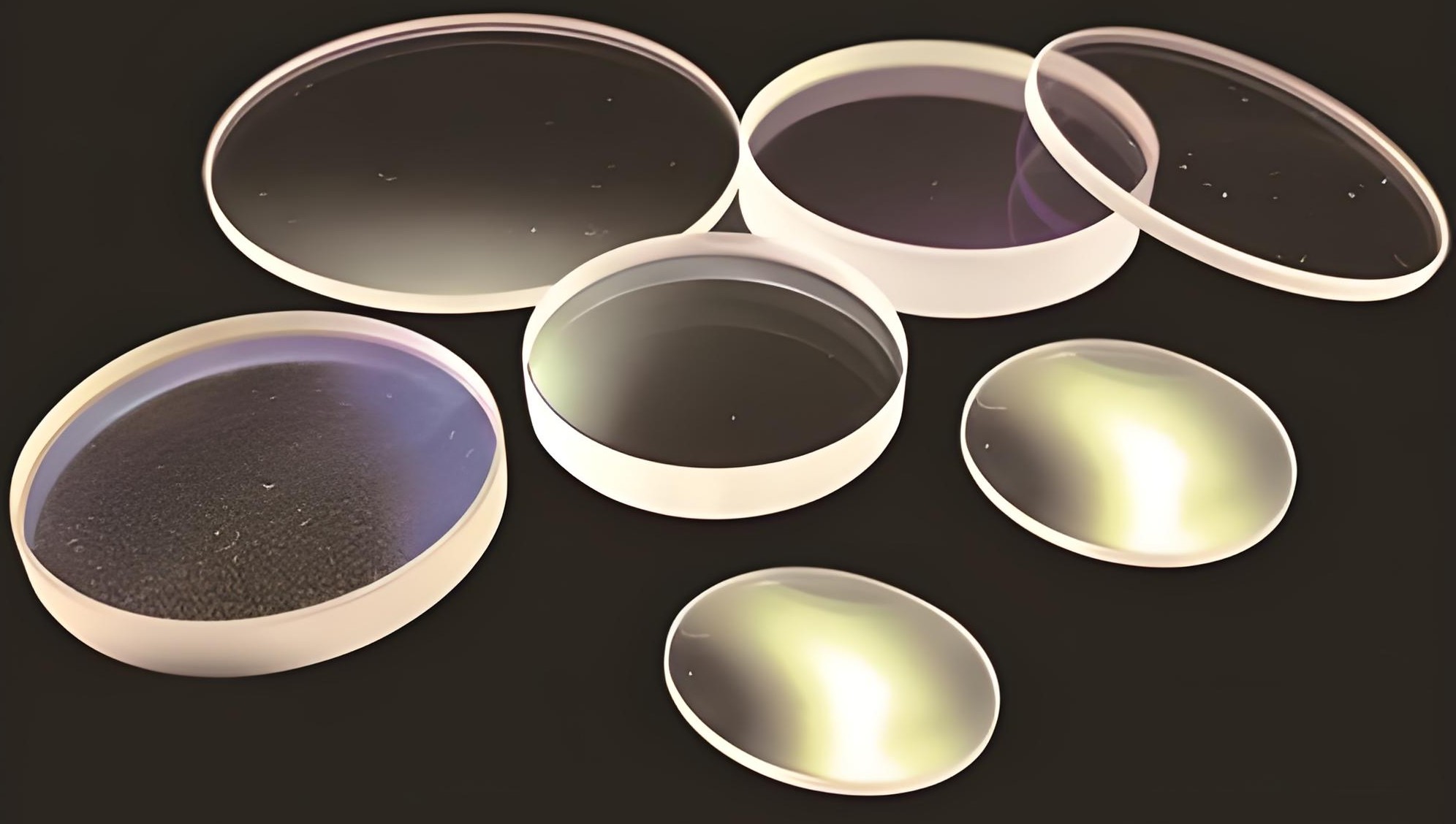

2. Laser Cutting Lens
- Function: Focuses the laser beam to achieve precise cuts.
- Lifespan: 3–6 months (depending on usage and maintenance).
- Cost: $100–$500 (depending on the type and quality of the lens).
|
|

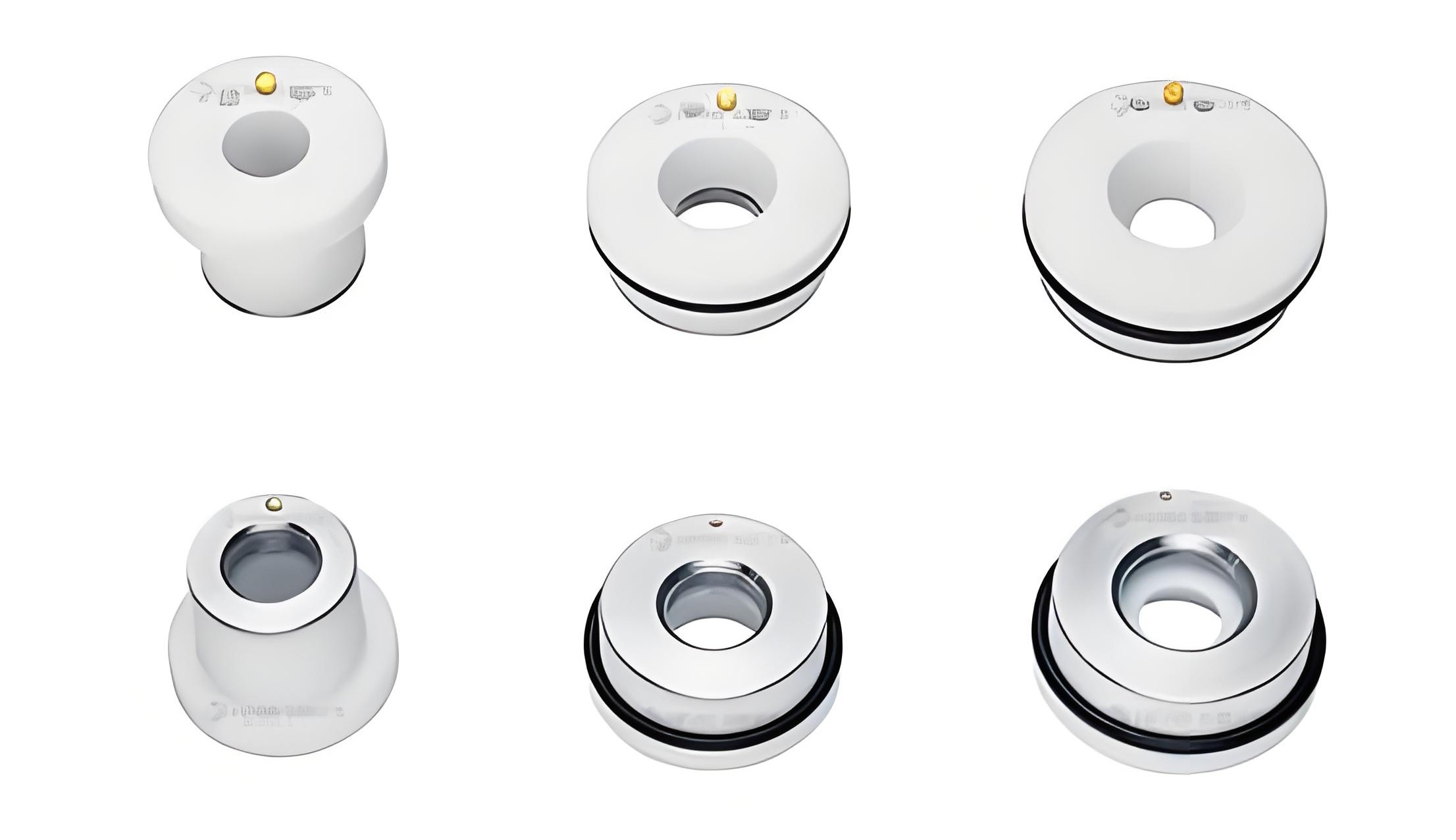

3. Ceramic Ring
- Function: Protects the nozzle and ensures proper alignment.
- Lifespan: 1–3 months (depending on usage).
- Cost: $10–$30 per ring.
|
|
4. Focus Lens
- Function: Helps maintain the laser beam's focus for accurate cutting.
- Lifespan: 6–12 months (depending on usage and cleaning).
- Cost: $50–$200.
|
|

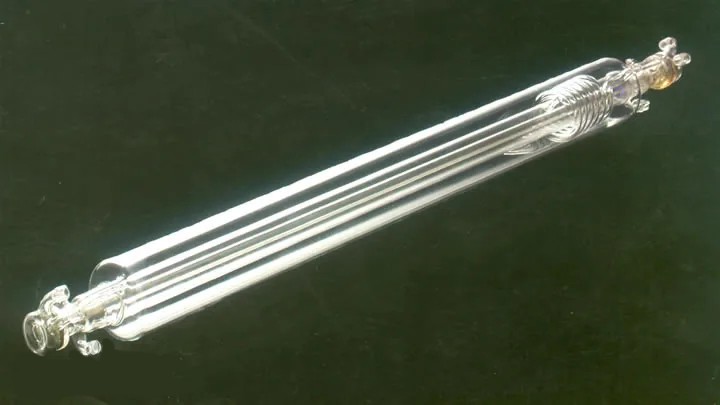

5. Laser Tube (for CO2 Lasers)
- Function: Generates the laser beam for cutting.
- Lifespan: 2,000–10,000 hours (depending on quality and usage).
- Cost: $500–$2,000 (depending on power and brand).
|
|
6. Fiber Laser Source (for Fiber Lasers)
- Function: Generates the laser beam in fiber laser machines.
- Lifespan: 50,000–100,000 hours (depending on usage and quality).
- Cost: $10,000–$50,000 (depending on power and brand).
|
|

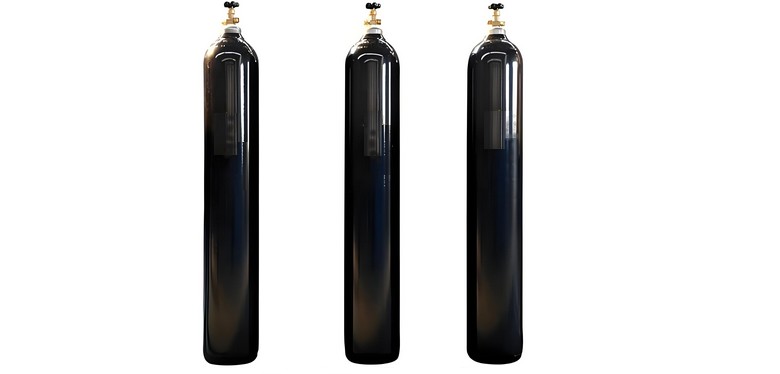

7. Assist Gas (e.g., Nitrogen, Oxygen, Compressed Air)
- Function: Used to blow away molten material and improve cutting quality.
- Lifespan: Continuous consumption during operation.
- Cost: Nitrogen: $0.50–$2 per cubic meter.
- Oxygen: $0.20–$1 per cubic meter.
- Compressed Air: Minimal cost if generated on-site.
|
|

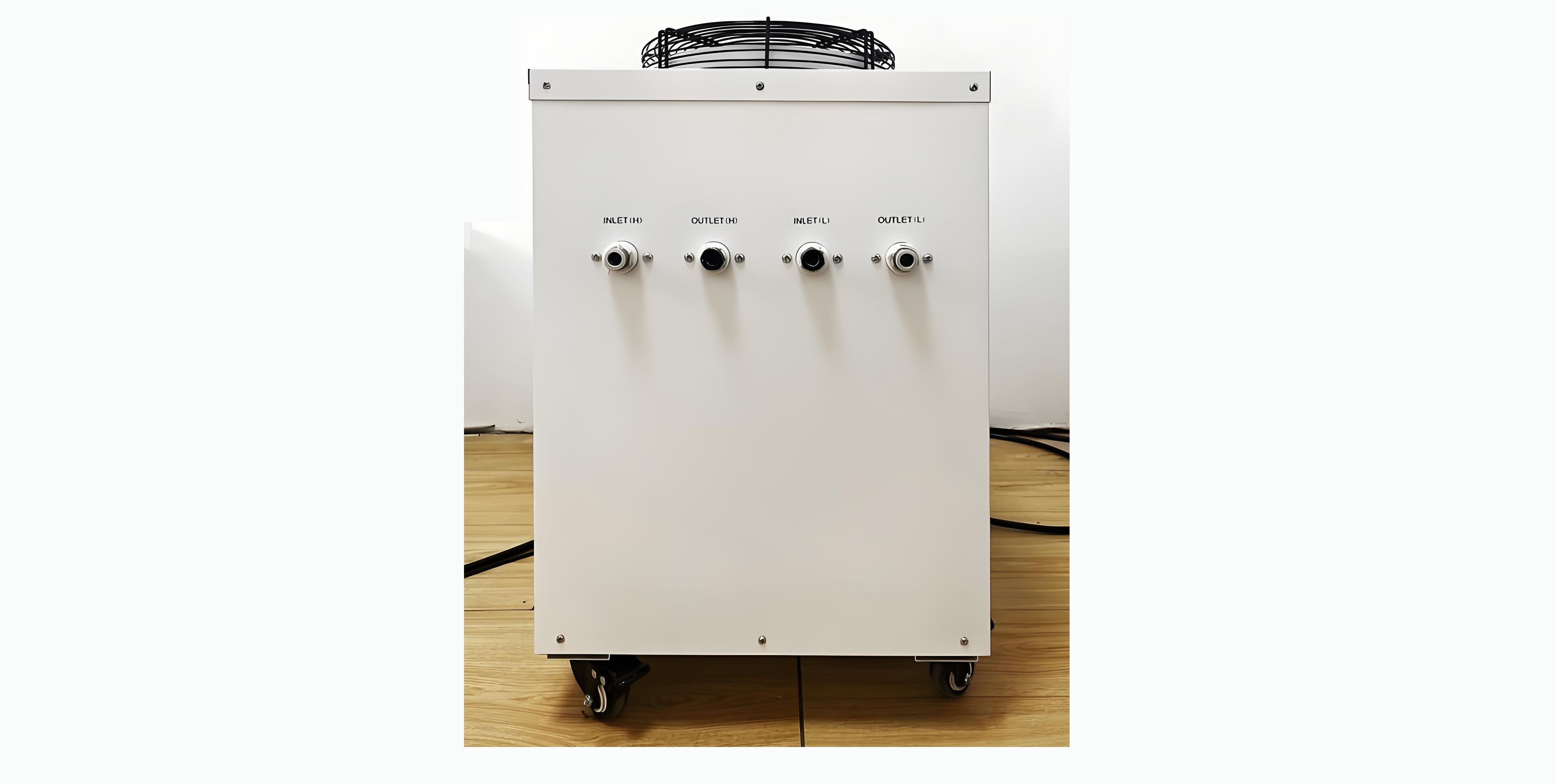

8. Chiller and Coolant
- Function: Cools the laser tube and other components to prevent overheating.
- Lifespan: Requires periodic replacement (every 6–12 months).
- Cost: $20–$100 per gallon.
|
|

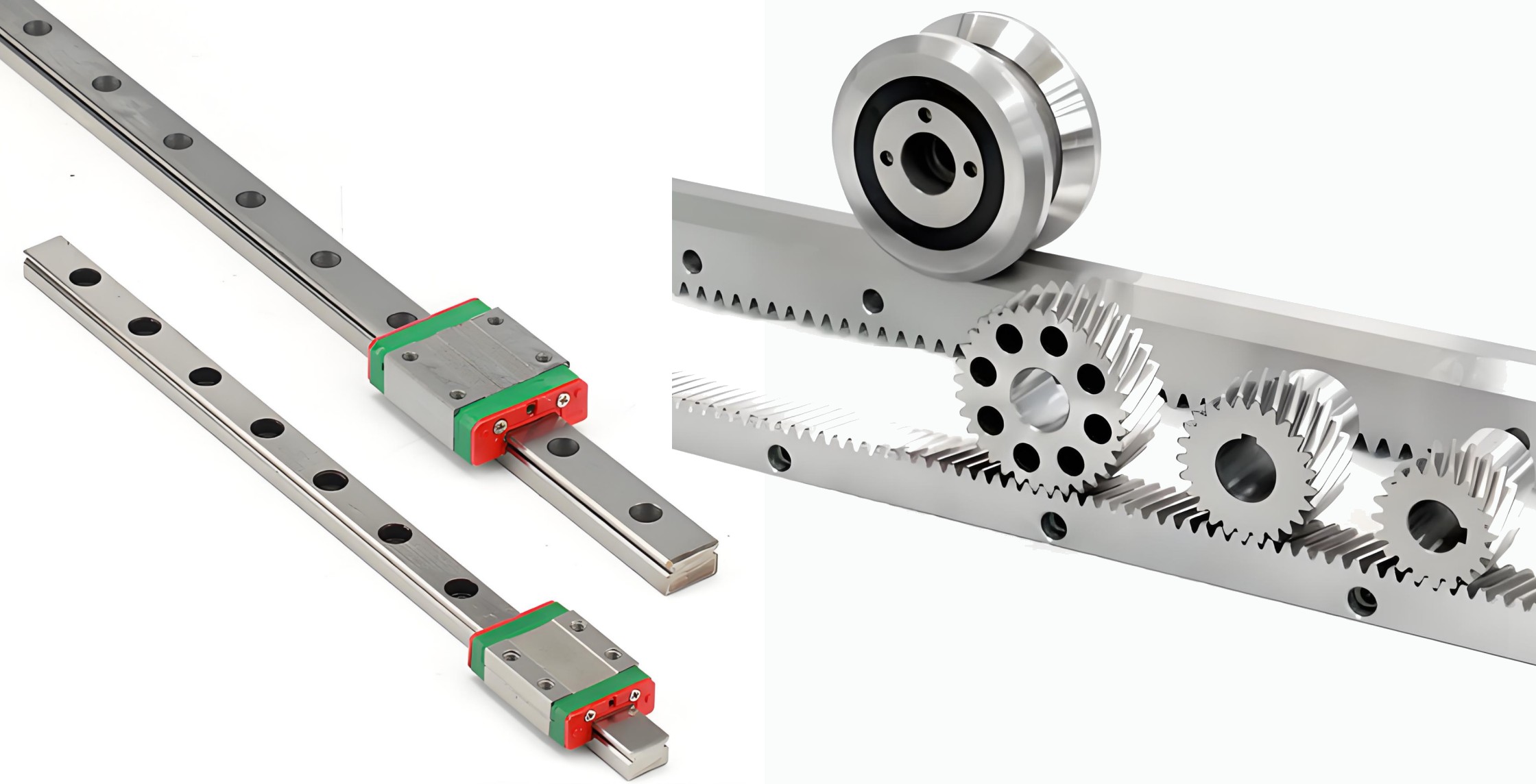

9. Rails, guides, and rack/pinion
- Function: Facilitate the movement of the machine's cutting head.
- Lifespan: 1–3 years (depending on usage and maintenance).
- Cost: $50–$200 per set.
|
|

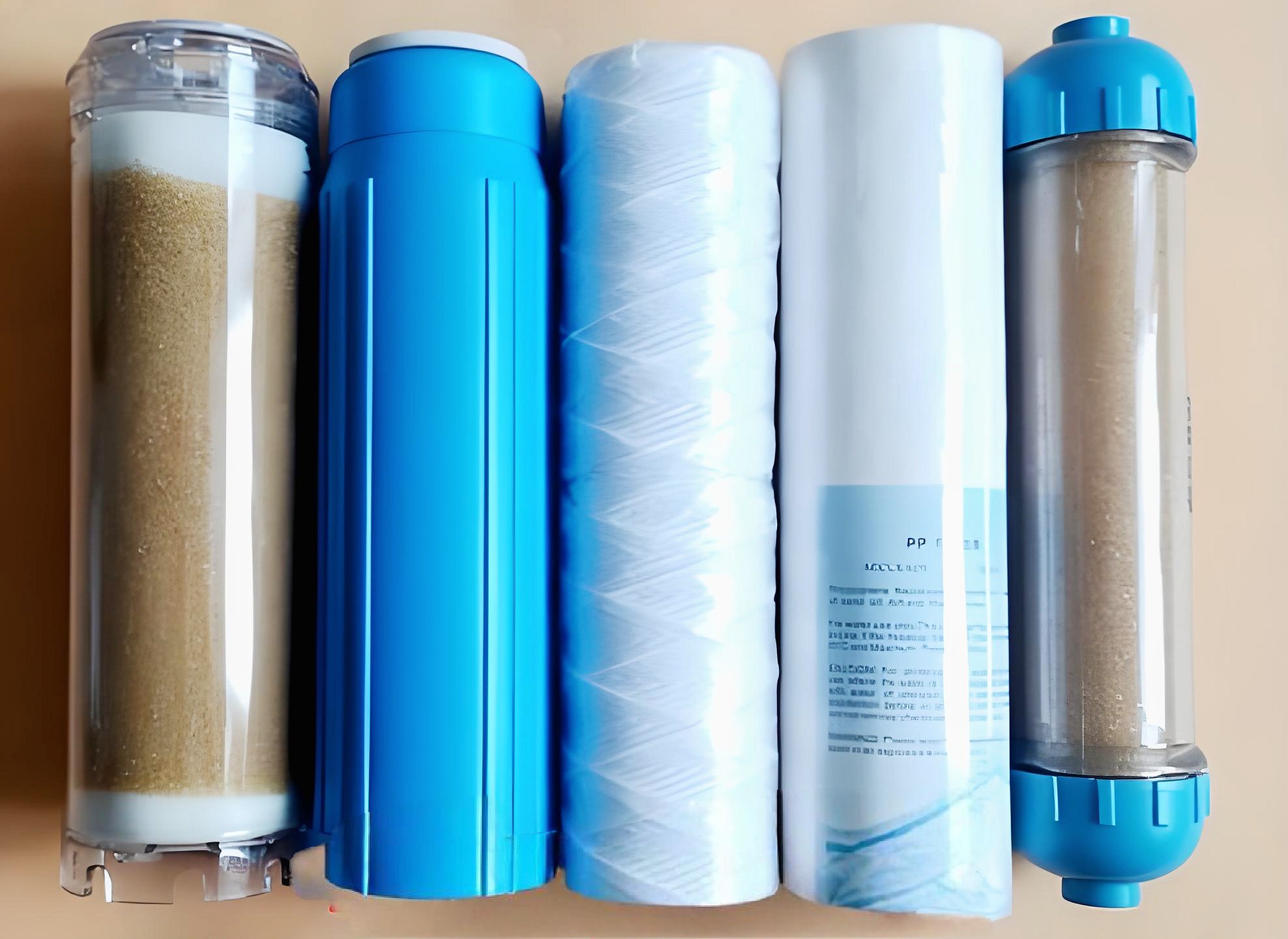

10. Filters (Air and Water)
- Function: Keep the cooling system and air supply clean.
- Lifespan: 3–6 months (depending on usage).
- Cost: $10–$50 per filter.
|
|

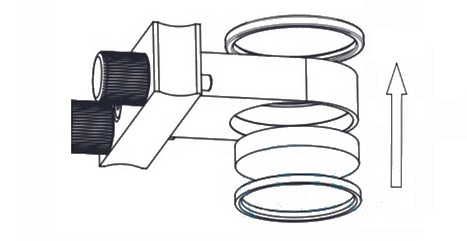

11. Protective Window
- Function: Protects the internal optics from debris and damage.
- Lifespan: 6–12 months (depending on usage).
- Cost: $50–$200.
|
|

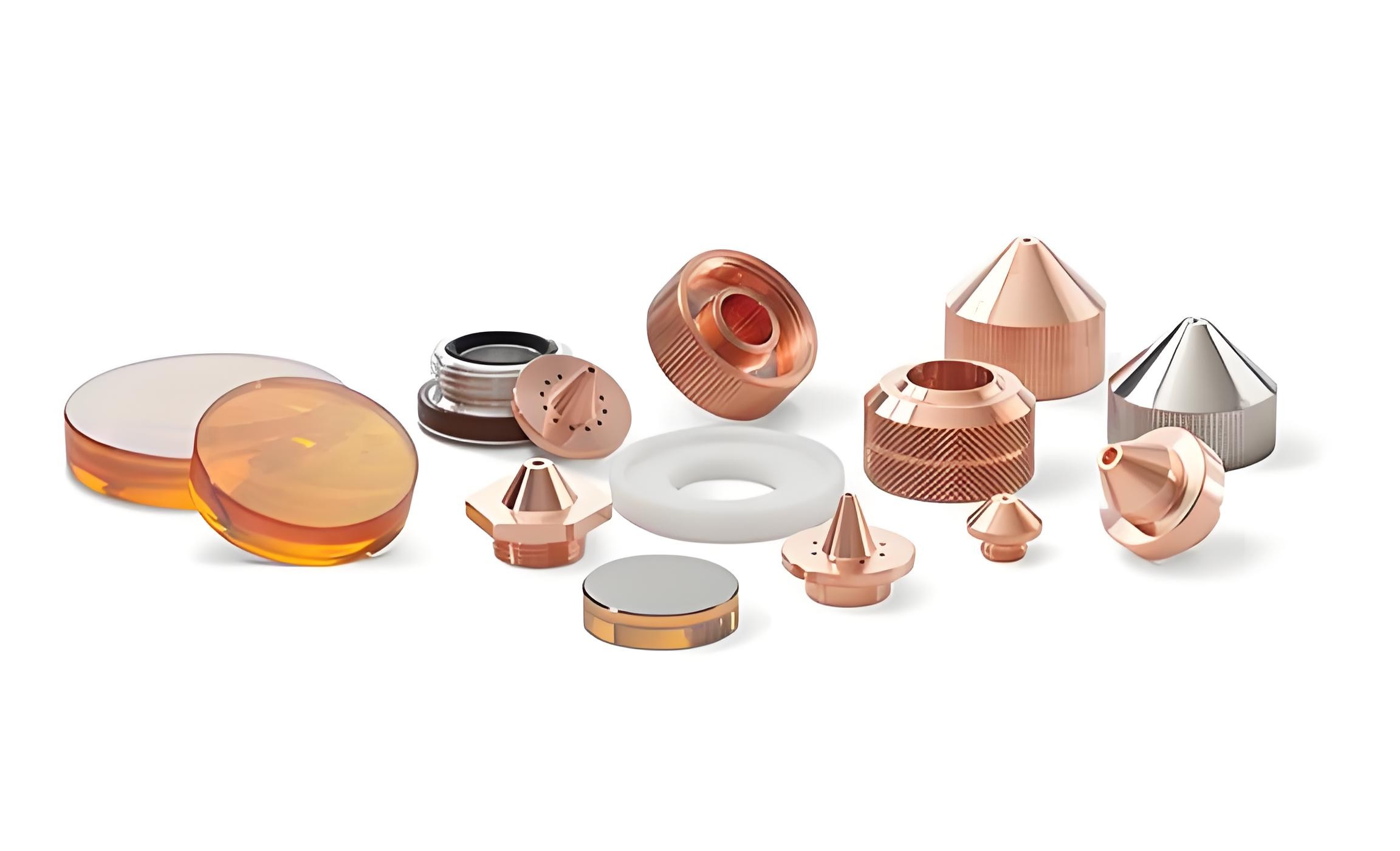

12. Consumable Kits (Nozzles, Lenses, Rings, etc.)
- Function: Bundled replacement parts for convenience.
- Lifespan: Varies based on components.
- Cost: $100–$500 per kit.
|
