What is CNC Laser Tube cutter?
This is a cutting machine that uses Laser as power source to make cuts on various shapes of tubes or beams,
such as square tubes, round tubes, I beams, H beams, or C beams. CNC controller is used to control the

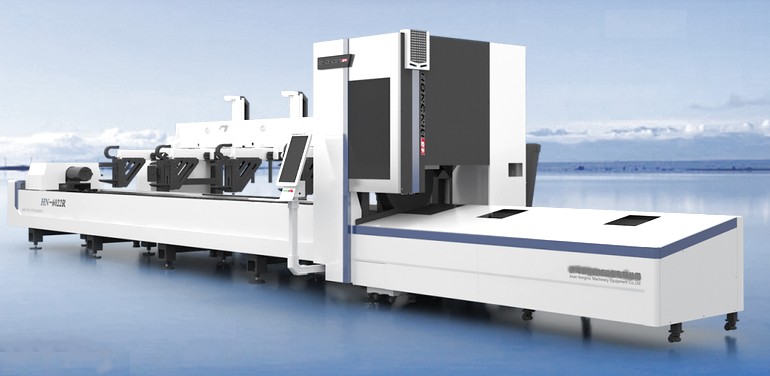

motion of this CNC Laser cutting torch or the rotation of the tubes or beams. The picture below shows a
typical system of Laser tube cutting machine. It consists of CNC controller, Laser power, and tube feeder.
What are the models of CNC laser tube cutter?
Mainly, there are light weight tube laser cutter, heavy duty laser pipe cutter, and combined tube and plate laser cutting machine
|
|
|

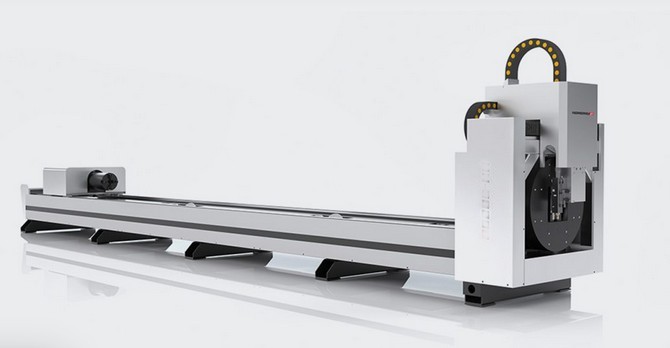

standard laser tube cutter
|

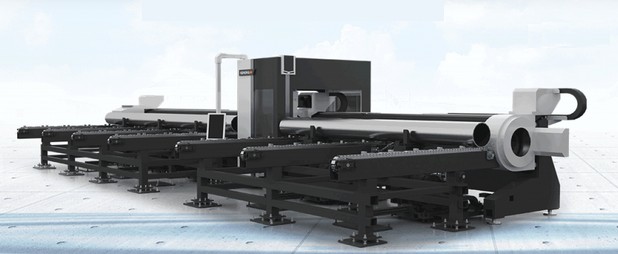

heavy duty laser pipe cutter
|
|
|
|
Side mounting laser pipe cutting machine
|

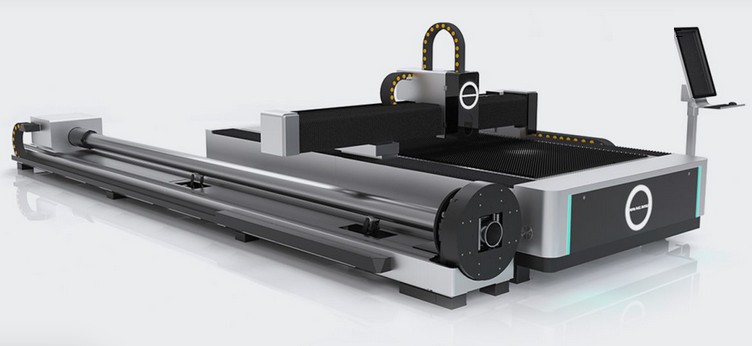

Combined plate and pipe laser cutting machine
|
Models and specification of CNC Laser Tube cutter
CNC Laser tube cutting machine is mainly useful to cut metal square tubes, angels, H or C beams,
and also round pipes. The machine can cut off the beam to length, or cut openings of any
desired shapes. It is of 5 axis CNC and equipped with servo system and linear guides for precision motion
control. Laser torch height control and collision protection are also included.
Models of Laser tube cutters are mainly Specified by the length of tubes the machine can cut, and also the
size of the tube the Laser tube cutter can rotate and cut, the OD of the round tube, or the square size
of the square tubes. Often the type of the laser power is part of the specification of the overall
Laser tube cutter.
|
|
