Portable CNC Waterjet Pipe Cutting Machines

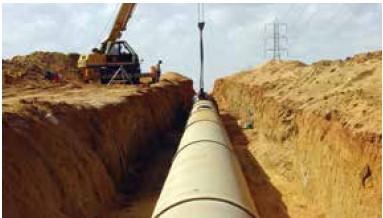

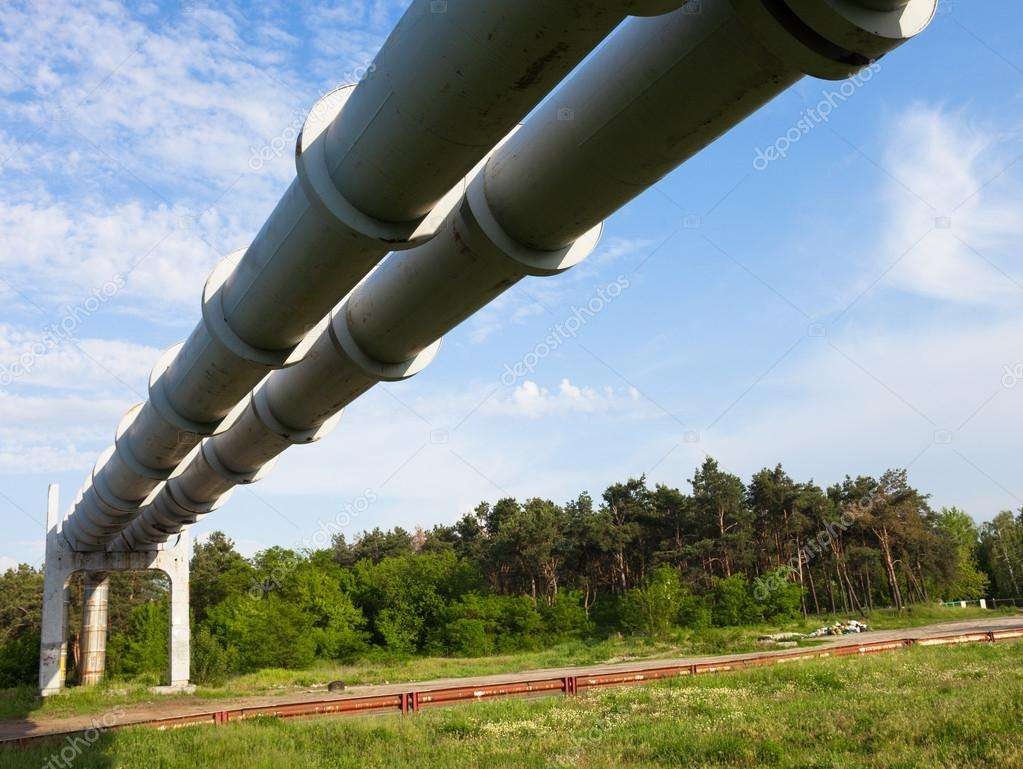

Many times, there are needs to make cuts on pipes that are already installed
in fields, whether underground or elevated up in air. This requres to bring
the equipment of cutting to the site of jobs. In addition, waterjet is often the
preferred method of cutting because the materials flow in the pipes are flamble
or explosive. Therefore Portable Waterjet Machine emerged to the world.
The cutting needs on these pipes are often as following: replacing damaged portion, adding new branch, etc.
For these applications, saddle cutts on the main pipe and fish mouth or miter cuts at the end of brach
pipes are the most common cuts. For accurate shape and size match of the saddle and fish mouth, CNC
controll is often used with portable waterjet cutting machine.

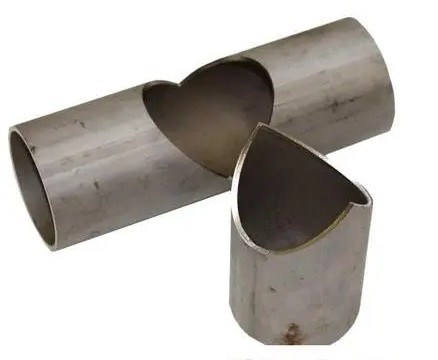

Saddle and fish mouth cut

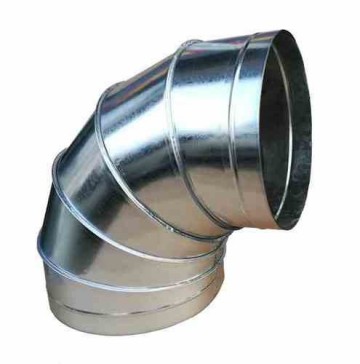

Miter cut bend pipe

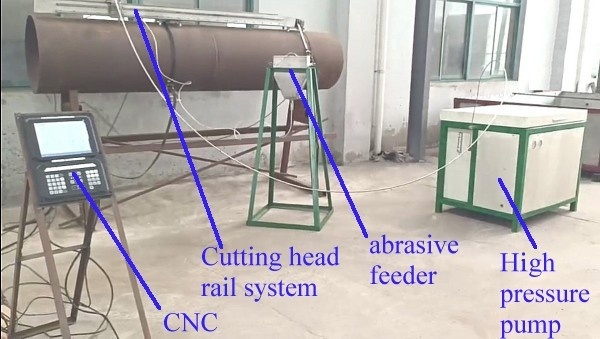

The portable water jet pipe cutting machine system consists of a high pressure water pump,
a CNC controlled rail system that carriers cutting head, and abrasie feeding system.
The waterjet pump is 30-50 hp and when cutting with abrasive, the max thickness of
mild steel is 80mm. The pump requires 3 phase electricity power supply of
220V -- 480V, 50 or 60 Hz, (specified by the customer). The pressurized water
is fed to the cutting head through a high pressure whip tubing.
The cutting rail can rotate around the pipe and the cutting head can travel along
the length of the rail. The CNC controller controls the rotation and the linear motion of the
cutting head along the rail simultaneously according to the CNC programming.
|
Advantage of IWM portable waterjet cutting machine.
IWM's special design of the portable waterjet cutting machine is espectially useful for the situations that pipe is not able to
move, and the only option is to let the waterejt cutting head go around the pipe to cut. There are two models of the portable
cutting head carrier. Model 1 is good for just cutting off the pipe. This vertion does not have CNC, and the cutting head
can just go around the pipe. Model 2 has a long rail and the cutting head can move along the rail while the rail goes
around the pipe. In this case the design has 2 axis, and it is capable to cut saddle and miter joints. Both models can cut
small and large diameters of pipes accourding to customers' requirements. The thickness of pipe that can be cut is up to
100mm.

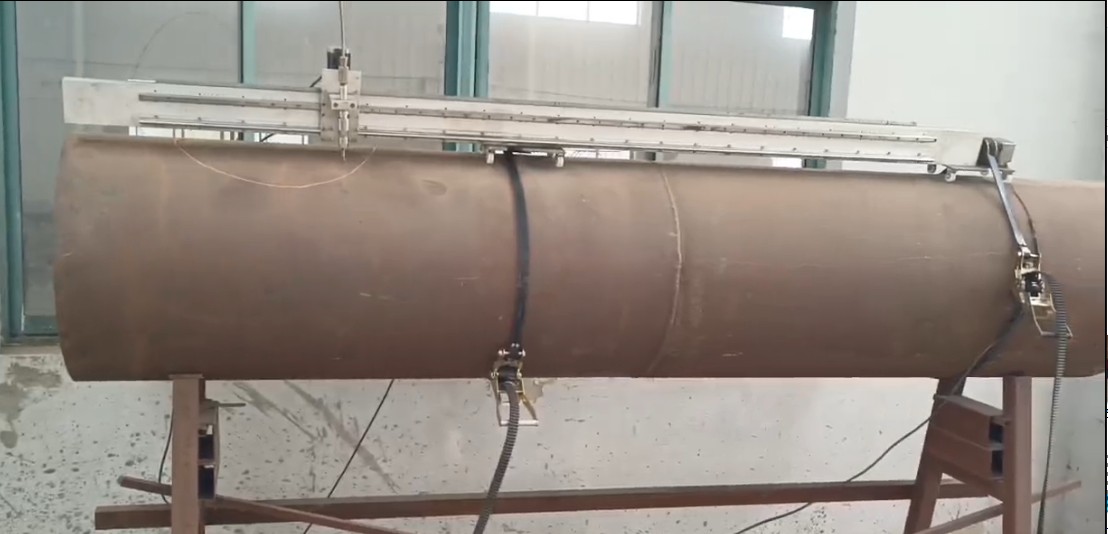

Model 1: simple one axis, cuts around the pipe only.
|
|

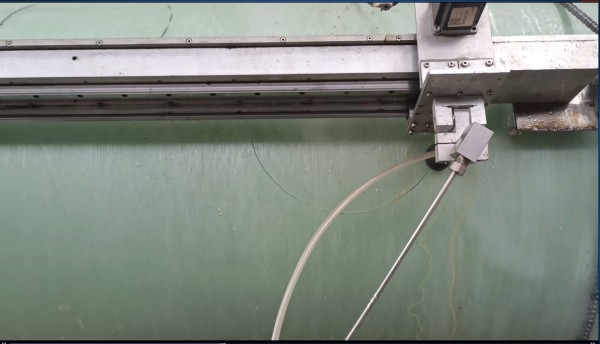

Model 2: two axis, long rail goes around the pipe and cutting head moves along the rail, can cut holes.
|
There are a few types of portable waterjet machines that are suitable for different cutting needs.
There are a few types of water jet pipe cutting machines that are suitable for different situations of pipes.
Here are some videos to show details of the portable waterjet pipe cutting machine, and to show the
actual cutting scenes.
Video 1: Model 1 portable waterjet cuts steel pipe.

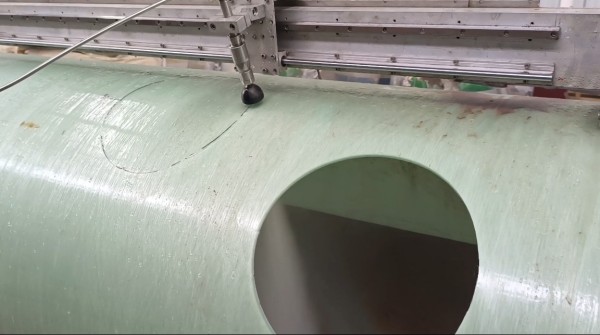

Video 2: Model 2 portable waterjet cuts hole in GRP pipe.
Video 3: pipe cutting machine with chuck.

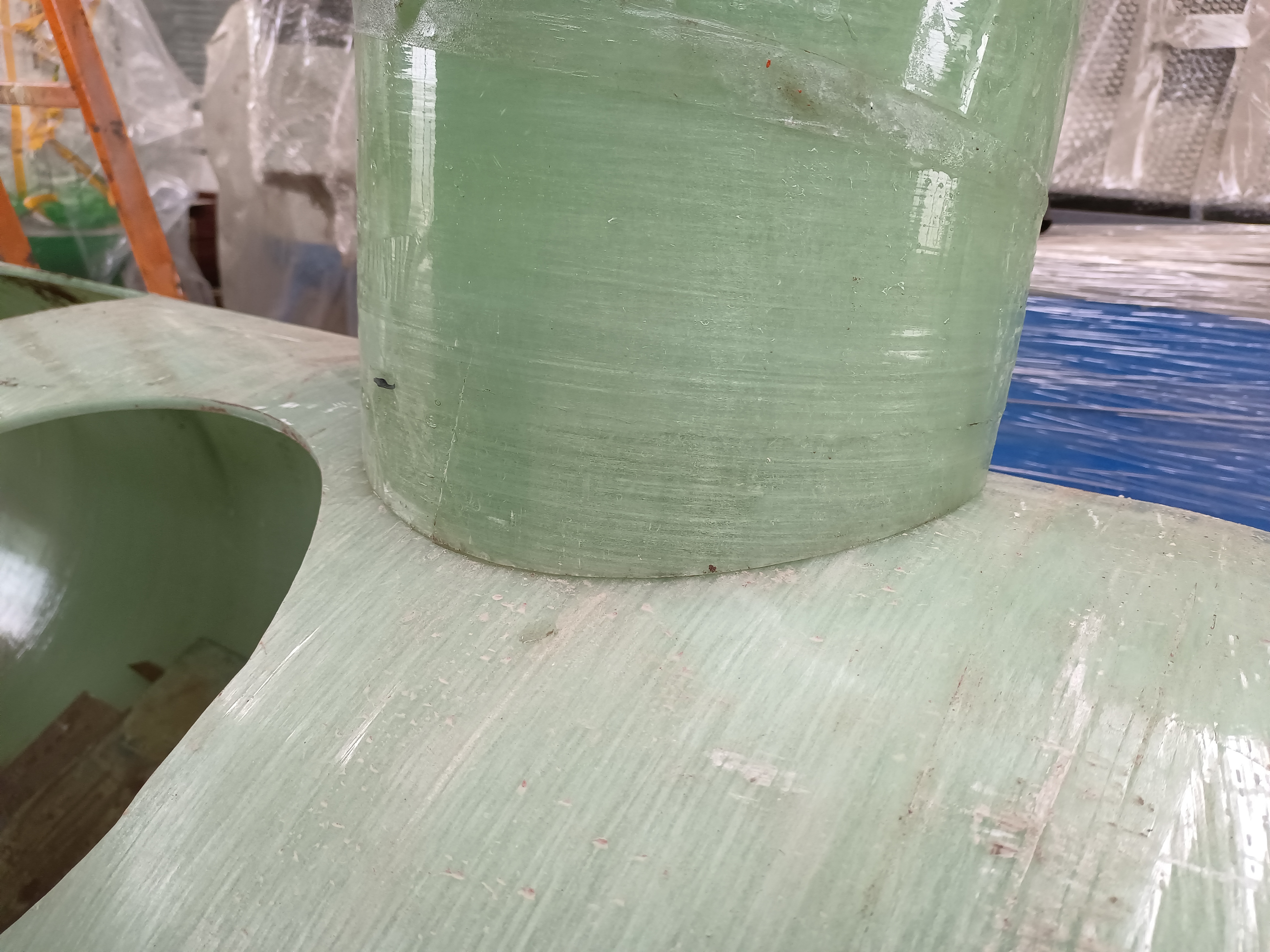

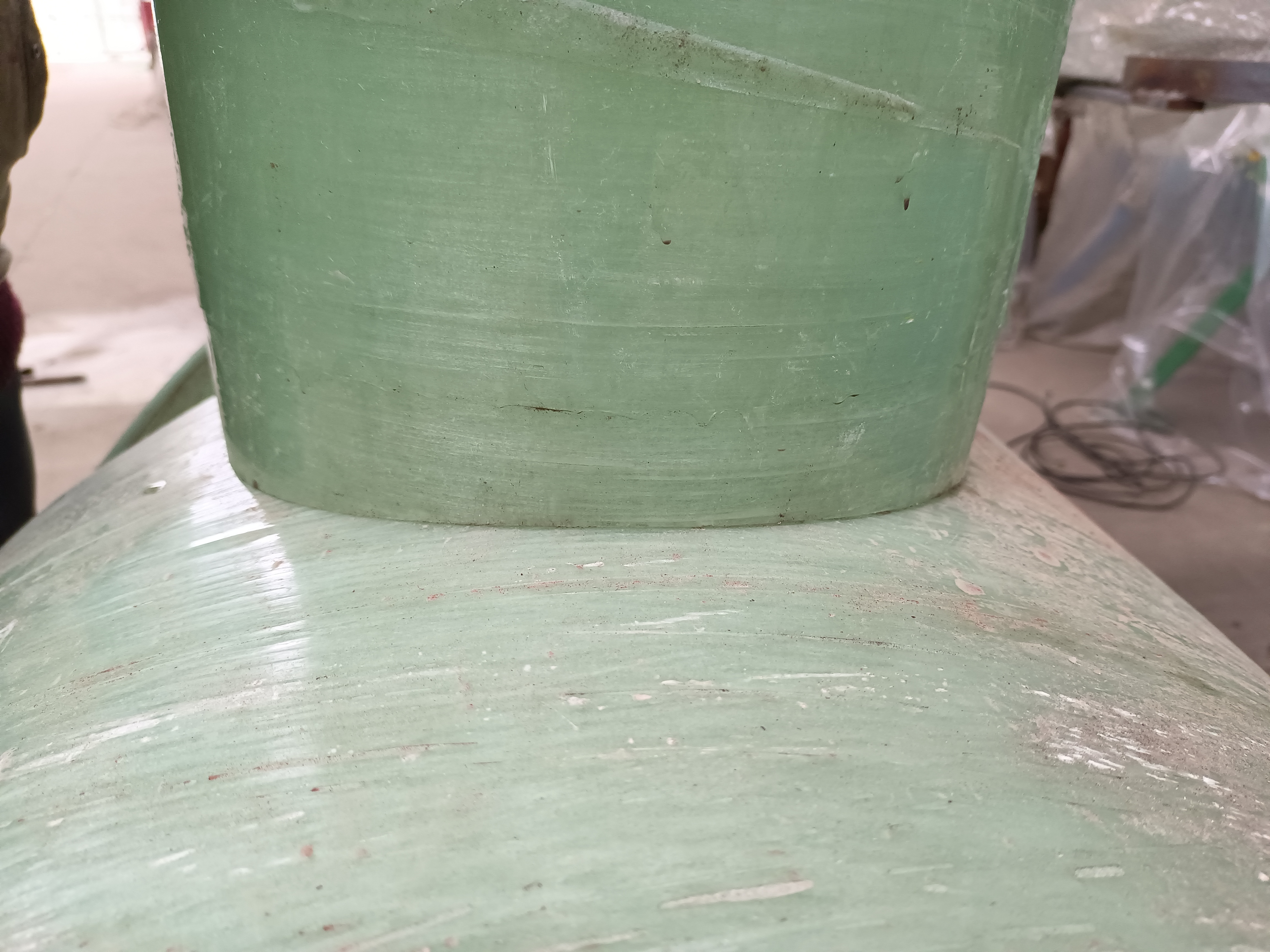

Perfect shape and size match from saddle and nozzle cut.
|
|
Zoom in to see the perfect combination of saddle and nose cut shape and size.
|
|
|
