CNC Waterjet Tire Cutting Machine

Tire is often made of rubber and steel beed bundle and other materials. Usually, the cutting tools that are suitable to cut rubber are not good at cutting steel. Similarly the common methords to cut steel are not right for cutting rubber. Waterjet is a cold cutting tool that is good for cutting metal or non-metal materials. High pressure water jet mixed with abrasive garnet is very strong to cut steel and rubber. During waterjet cutting, the process does not yield large mount of heat so that it will not burn the rubber and produce smell.

There are several applications that we need to cut tires:

1. We need to cut out the cross section of a tire to inspect the quality during production of tire.

2. We need to cut tires in order to repair it.

3. To cut large tires into smaller pierces for recycling.

.

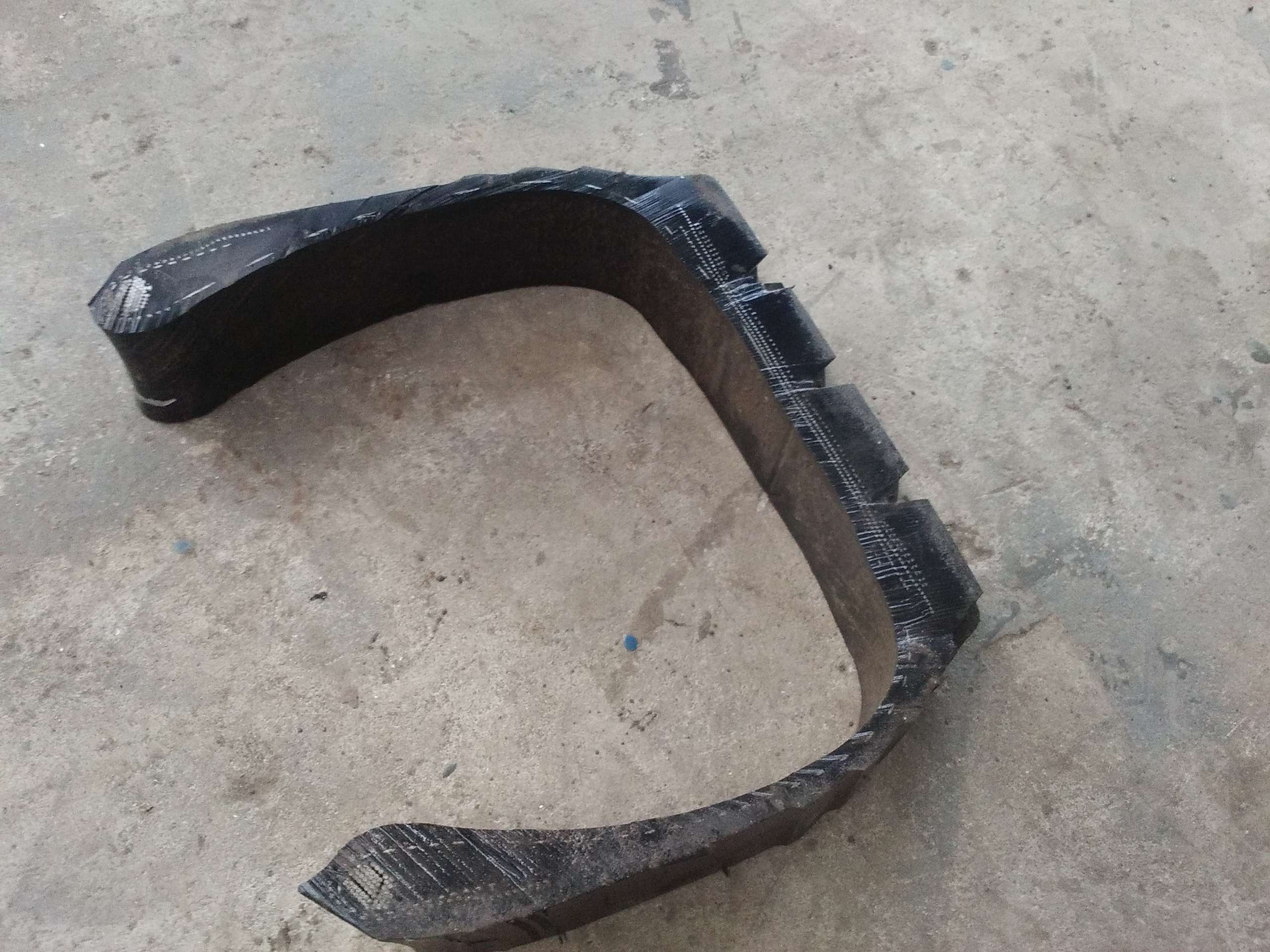

Special design of waterjet cuts out a strip of cross section of tire.	Special design of waterjet cuts out a strip of cross section of tire.

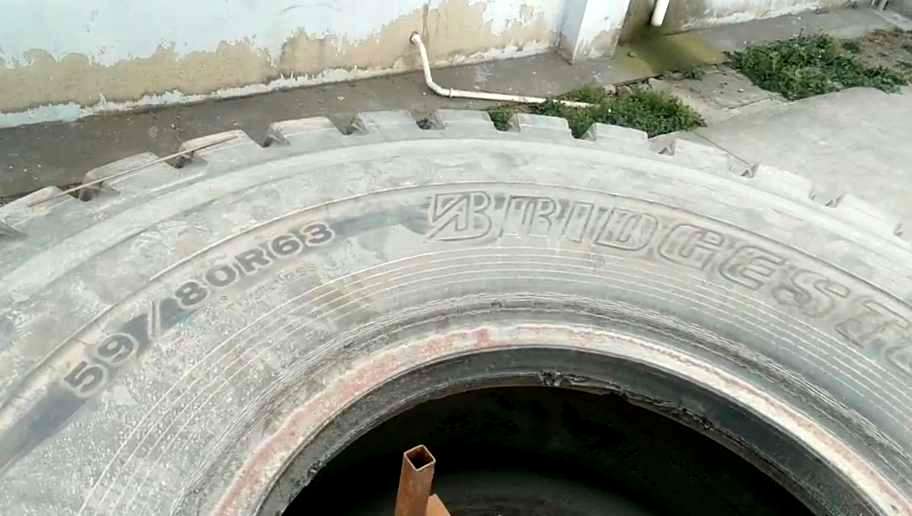

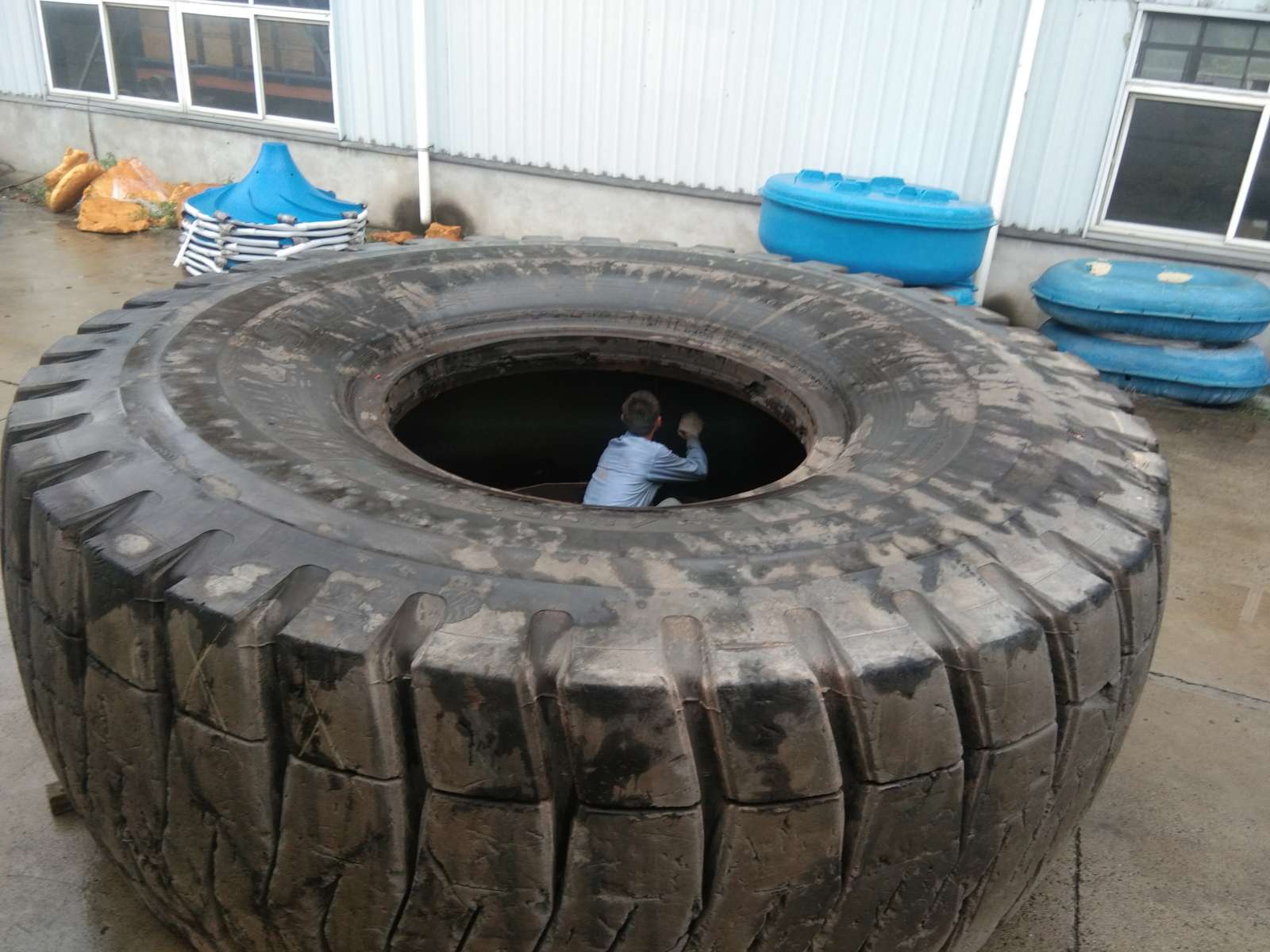

large size tire Bridgestone 59/80R63	large size tire Bridgestone 59/80R63 compaired with a person

waterjet cuts bead of a tire	waterjet cuts tread of a tire

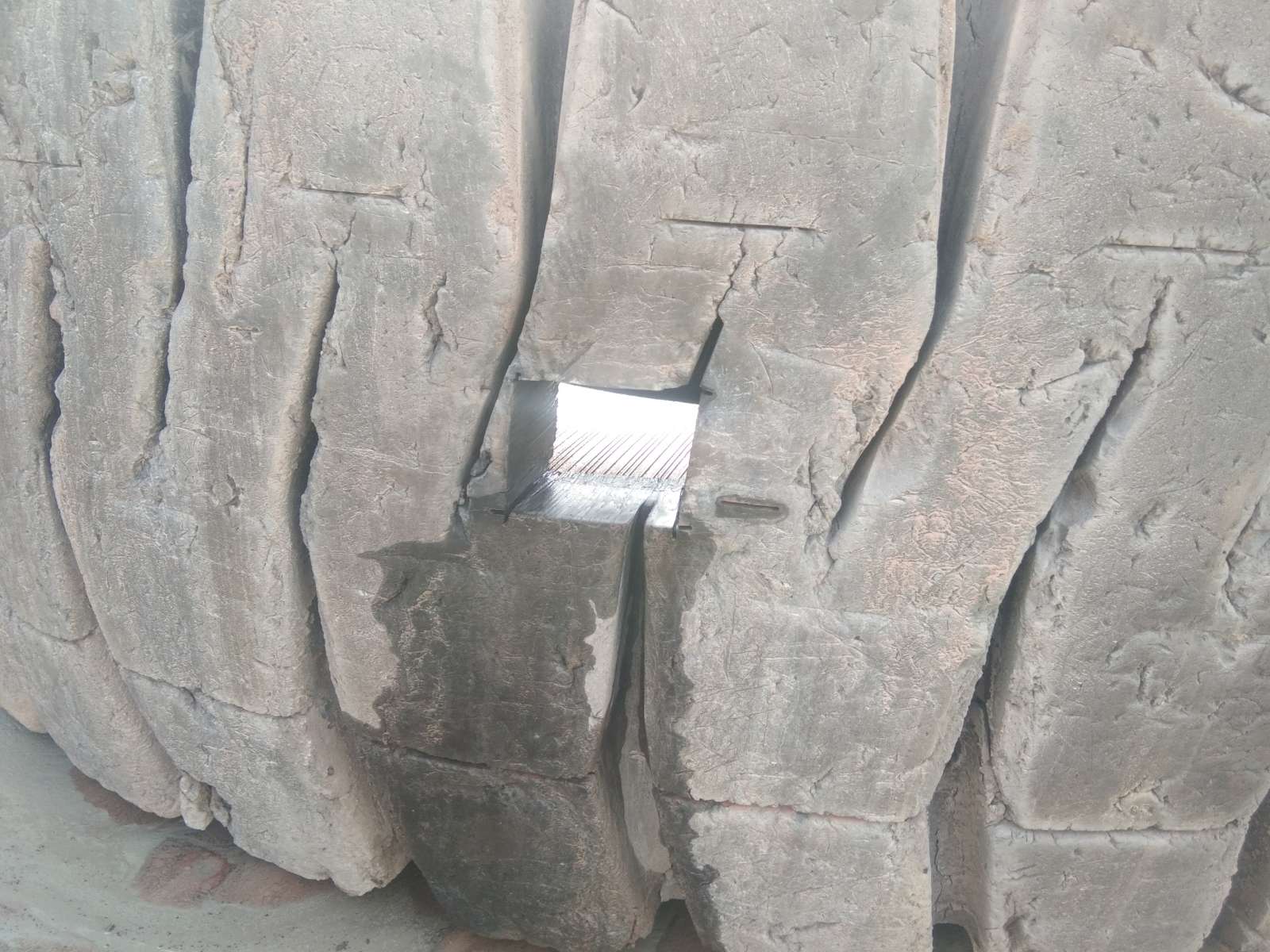

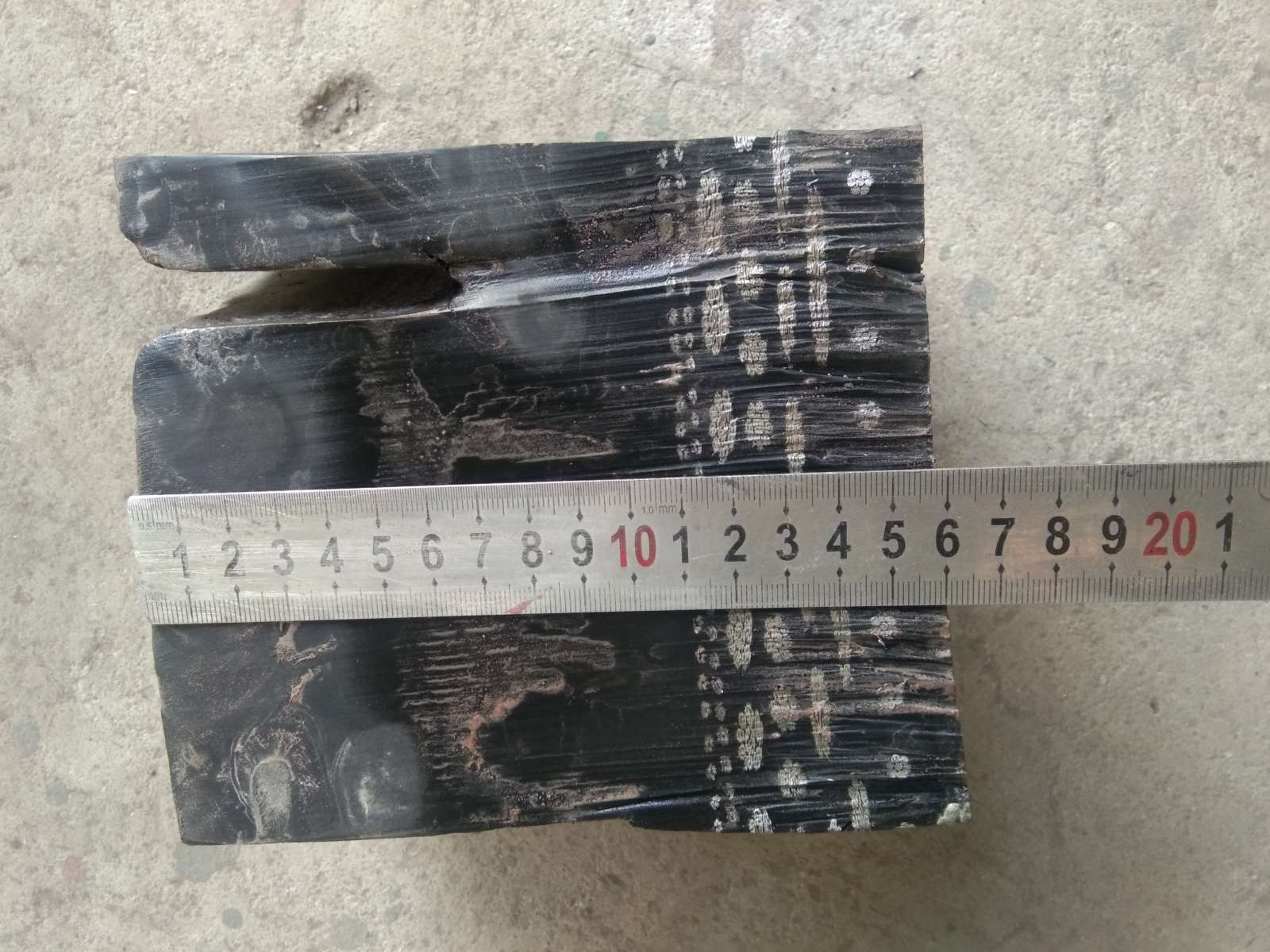

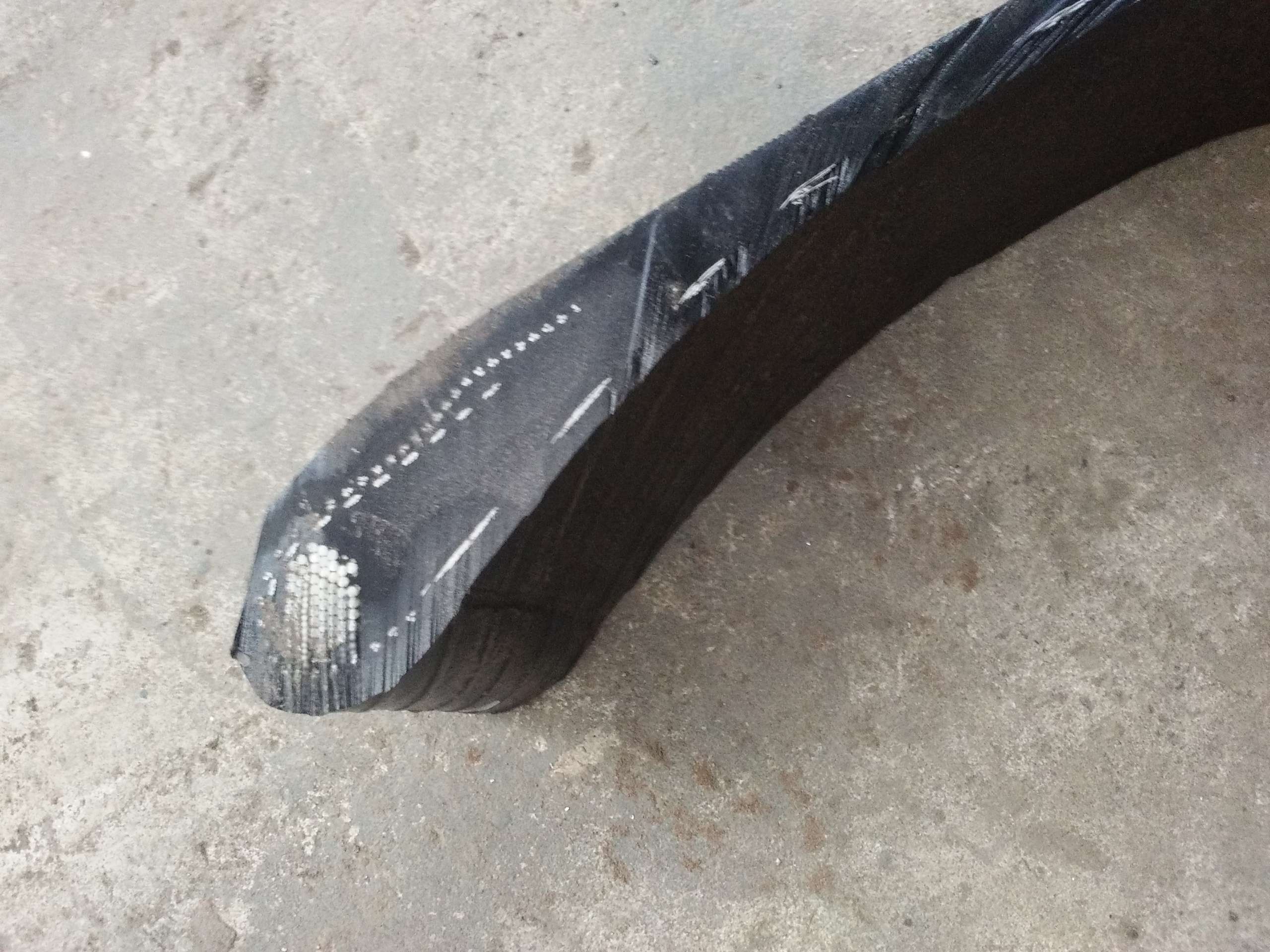

an openning in the tread	thickness of cut out section from tread

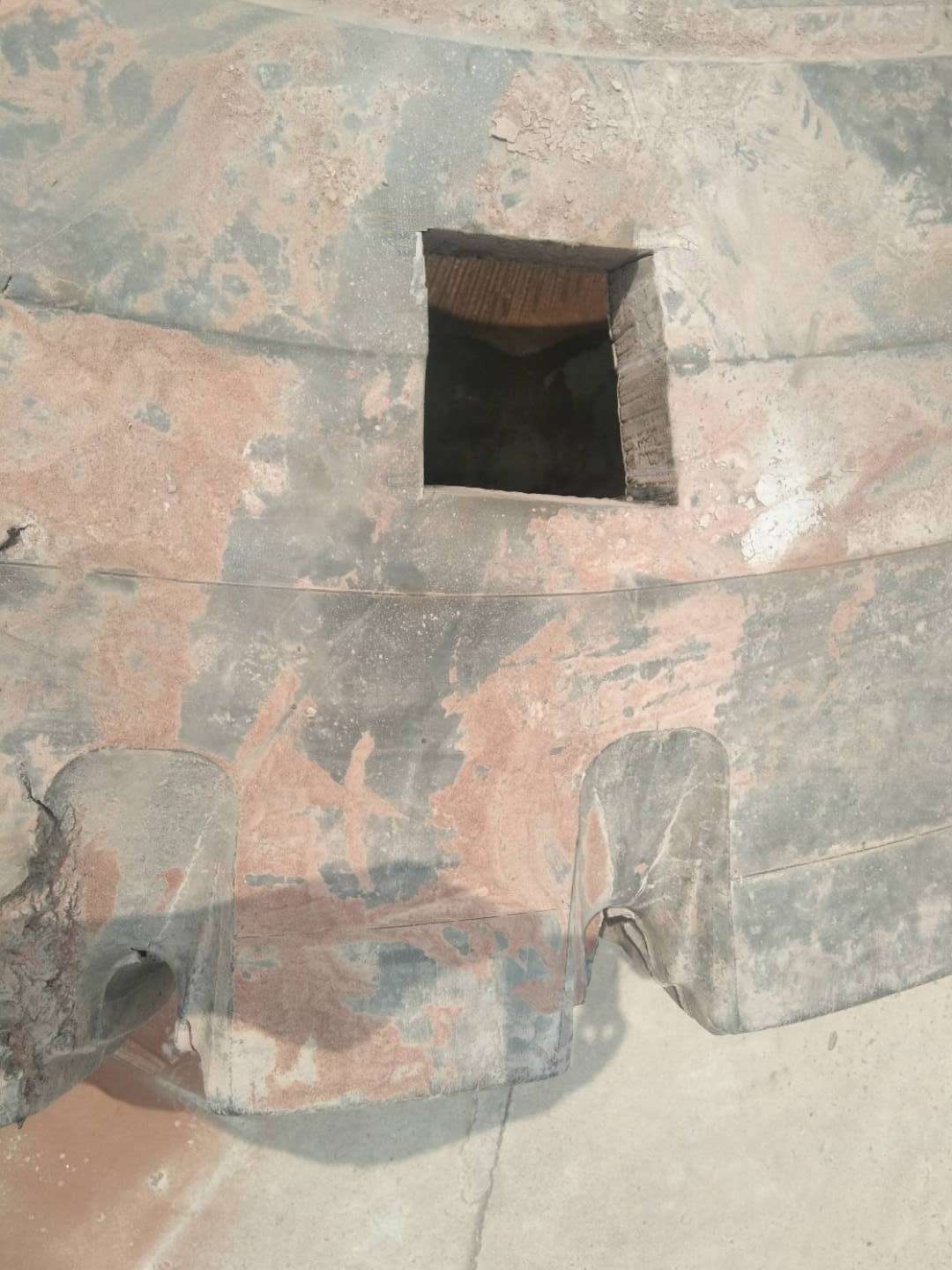

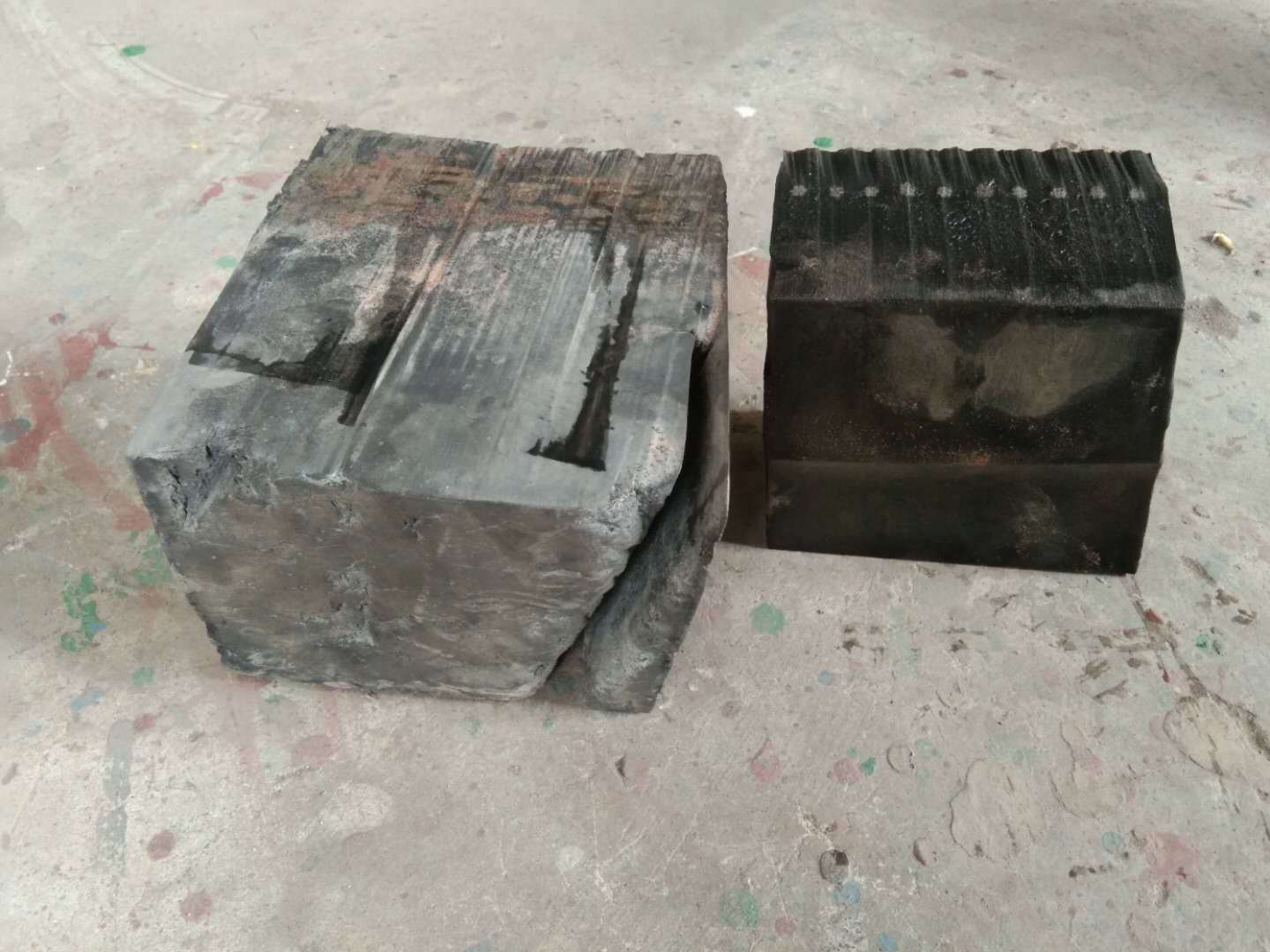

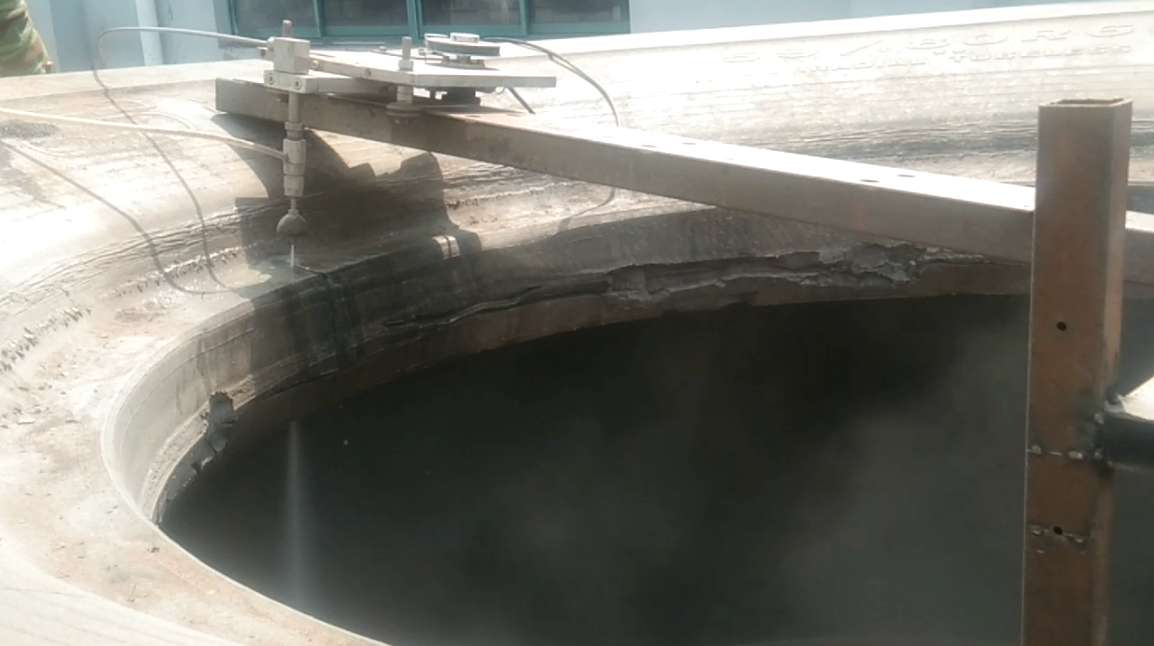

an openning in the sidewall	cut out sections from the tire

Advantage of IWM waterjet tire cutting machine.

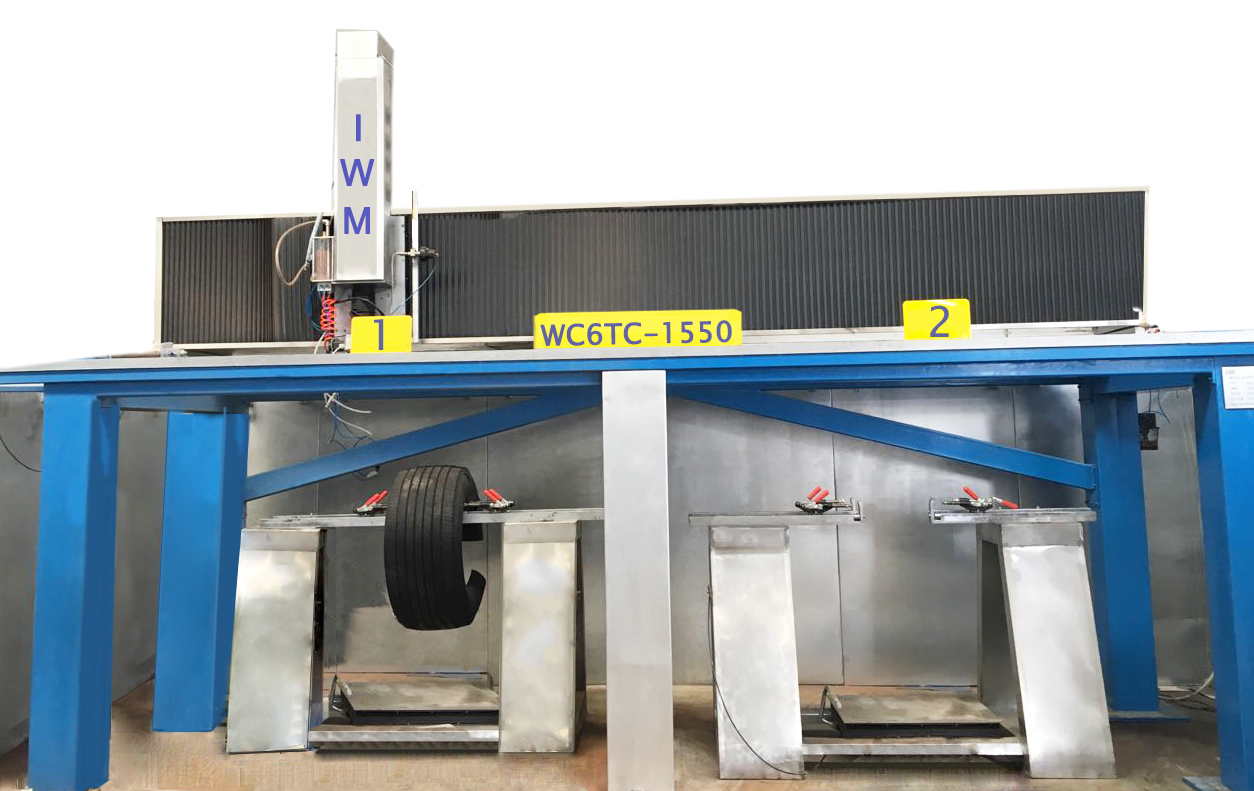

can cut various sizes of tires	dual work station improves production

repair of large OTR tires	Off the road tires

Here are some videos to show details of the waterjet tire cutting machine, and to show the actual cutting scenes.

Video 1: waterjet cuts tire strips.

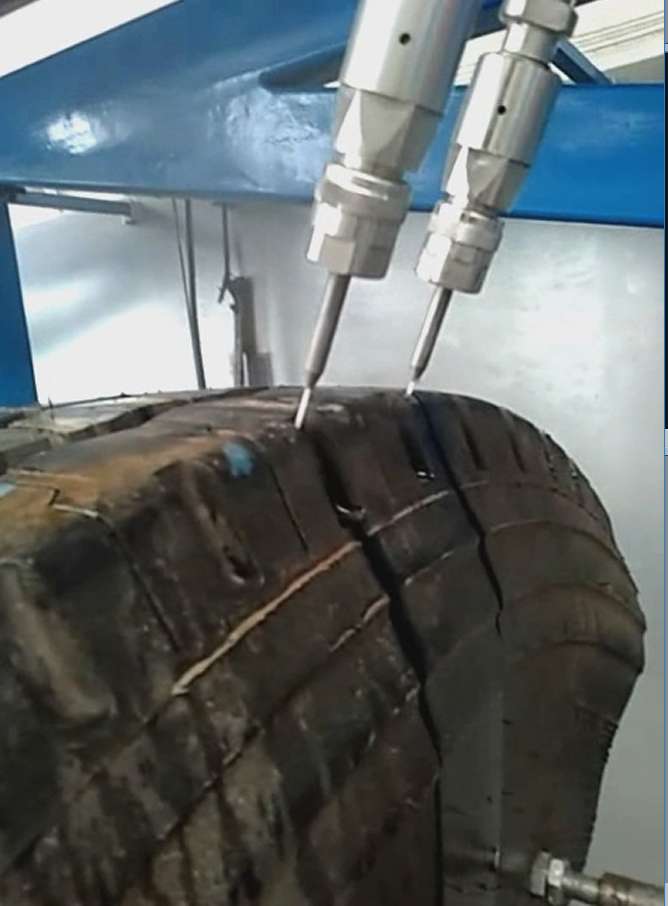

Video 2: dual cutting head waterjet cuts tire strip.
Video 3: portable waterjet machine cuts large size tire 59/80R63.
